PH10LC2

Refined headlamp


PH10 series

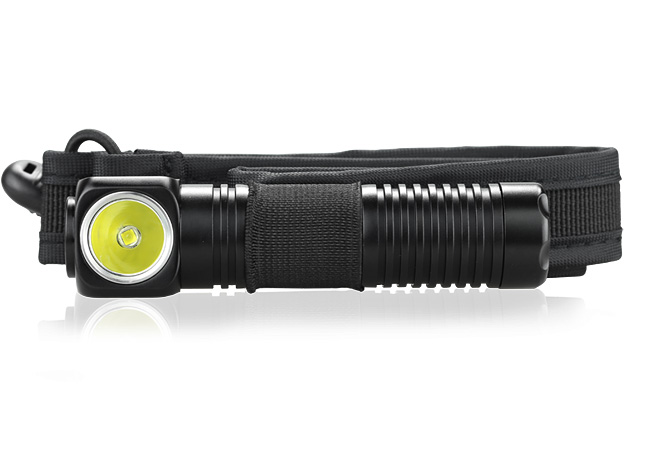

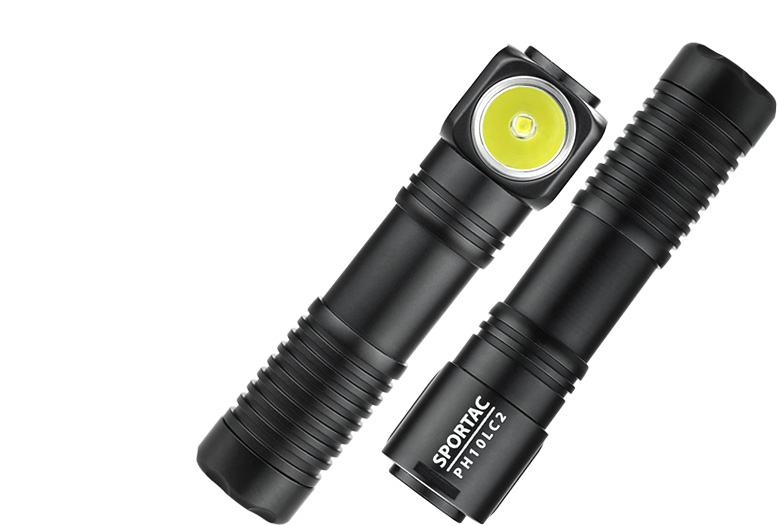

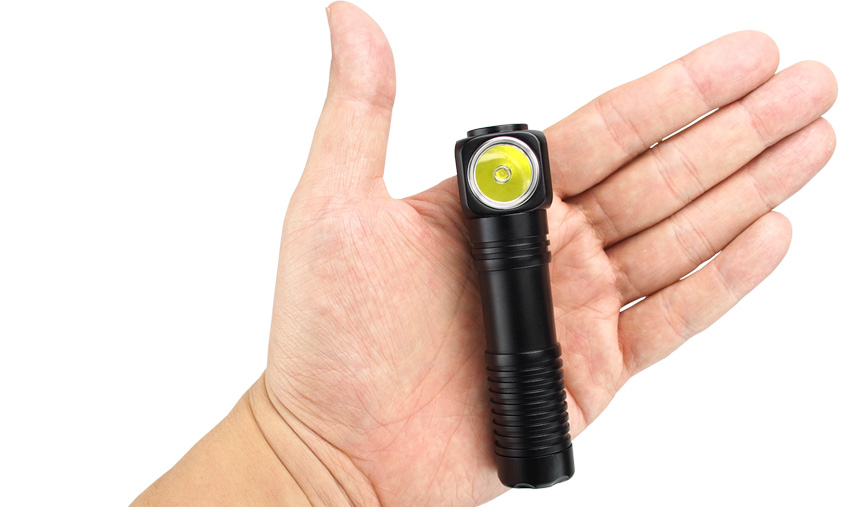

The all aluminum constructed SPORTAC headlamp offers you maximum lumen output with just one click. The PH10 series free your hands whether you are working with close-up stuff, or viewing far object at 172+ yards away with MAX output.



Back to top

Ultra high performance

1120 LED Lumen

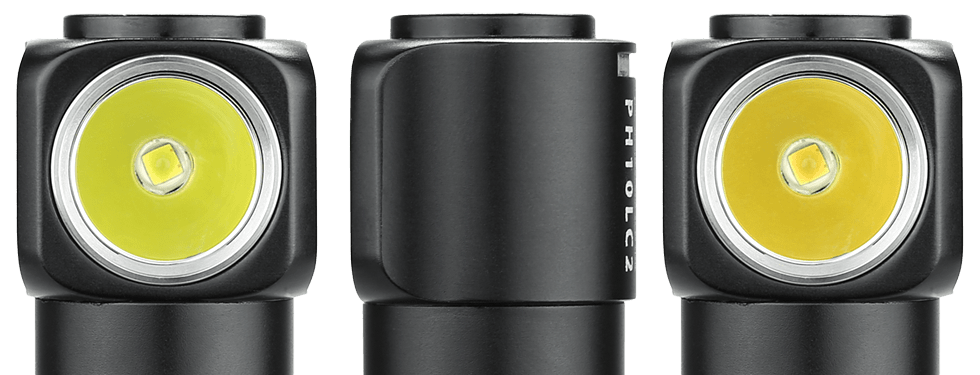

Powered by the top binned CREE XM-L2 U2 Cool White. The PH10LC2 gives you the maximum brightness output in its class. Neutral white output color is also available with CREE XM-L2 N.W. T6 LED.

200+ hours runtime

Get maximum continuous runtime with the lowest output of 4lm, which is enough to last through weeks. Get 1.5 hours of runtime at the maximum output level. The three other intermediate levels offers between 2.8 to 25 hours of runtime with a single 18650 li-ion battery.

Back to top

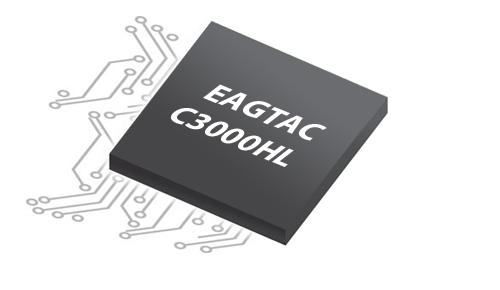

C3000HL


Low dropout & highly efficient circuit

To enhance the current regulated runtime with single li-ion battery, we used the latest IC and high-end passive components to minimize the internal resistance and the dropout voltage of the circuitry.

Smart voltage report system

Once the headlamp has been turned on or brightness level has been changed, the micro blue LED located under the semi-transparent on/off switch silicon boot will flash once, twice, or three times to communicate the current voltage level to you.

Back to top

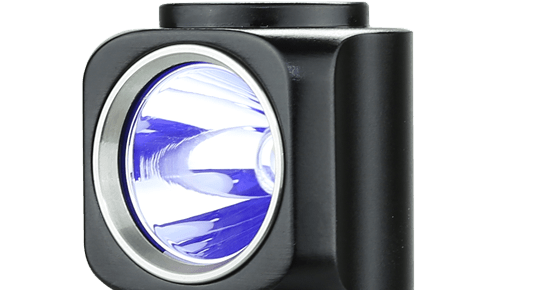

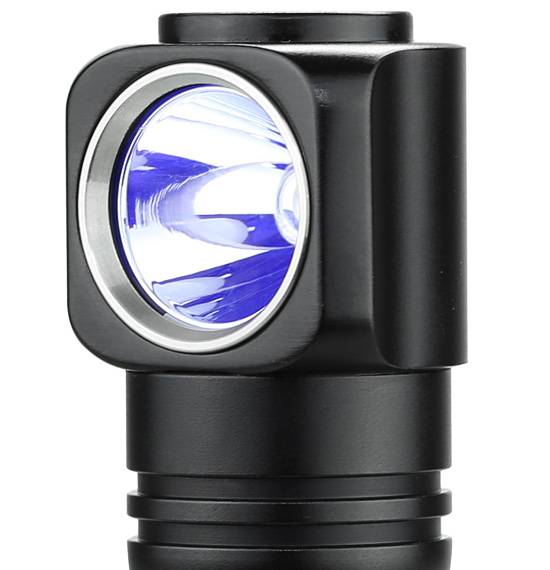

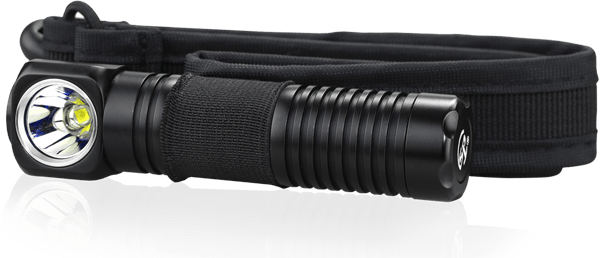

Deep reflector design


172 yards beam distance

The magical reflector sitting inside the PH10 series offers you with a perfect perfect between spot and flood beam. At lower output, the overall beam is great for close-up work. At MAX output, the spot beam is excellent for viewing at medium and long distance.



Back to top

One hand operation signal clicky switch

One press for MAX or MIN output

Press and hold the on/off switch button from off for MAX output. Press and release quickly (within 0.3s) to turn on the headlamp at MIN output to preseve your night vision.

Five pre-defined output

Press and hold the on/off switch to toggle between five well defined brightness output. Press and hold for more than 10 seconds to enable 1.5Hz blinking mode.

Back to top

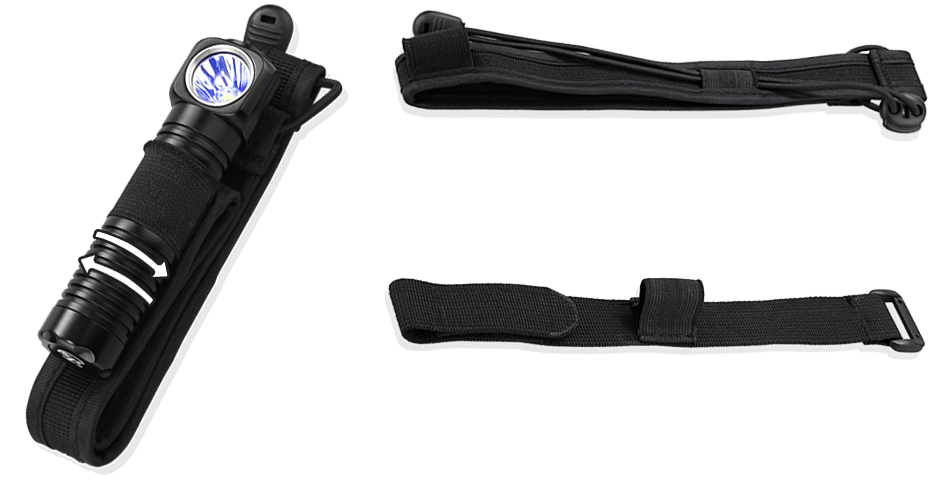

Two mounting options

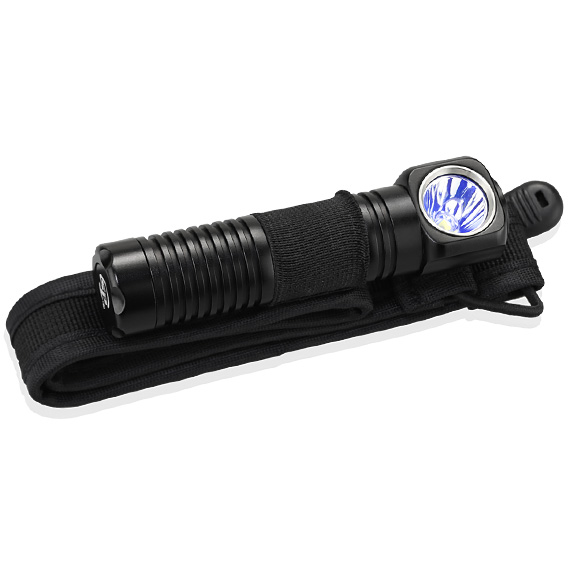

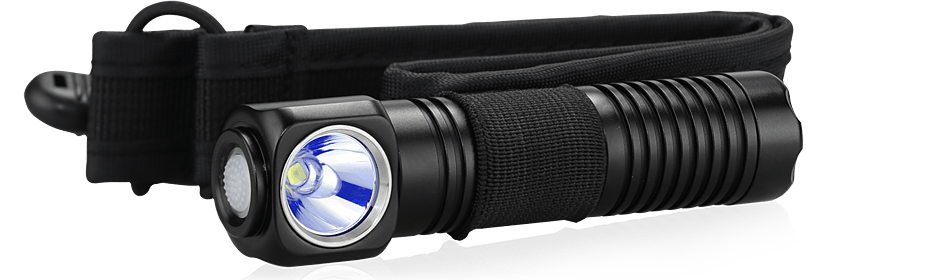

Light weight nylon headband

Our included advanced durable and light weight headband is designed for daily comfort wearing. You can adjust the viewing angle of the headlamp by rotating the headlamp body.







Bike helmet mounting band

This optional helmet mounting band allows you the mount the headlamp on top of your bike helmet. It also adjust the same way as the beadband.




t_seriest

MSRP $82
